Comman Applications

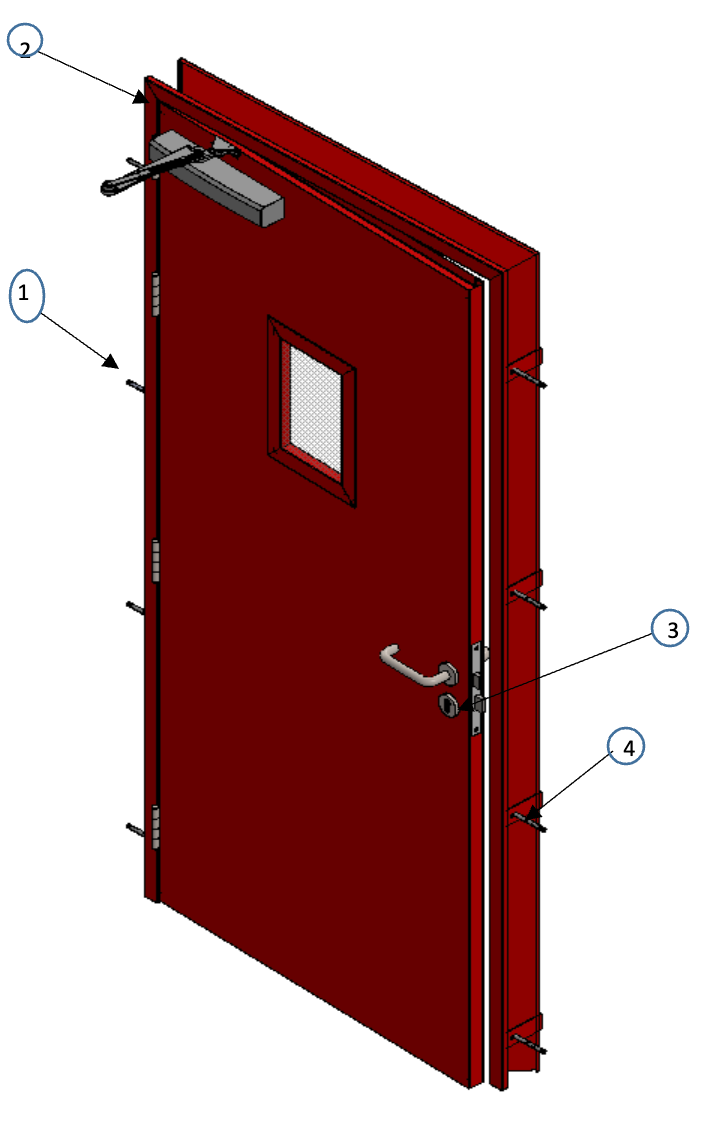

D1 : Single leaf latch lock door
Essential D1 Components

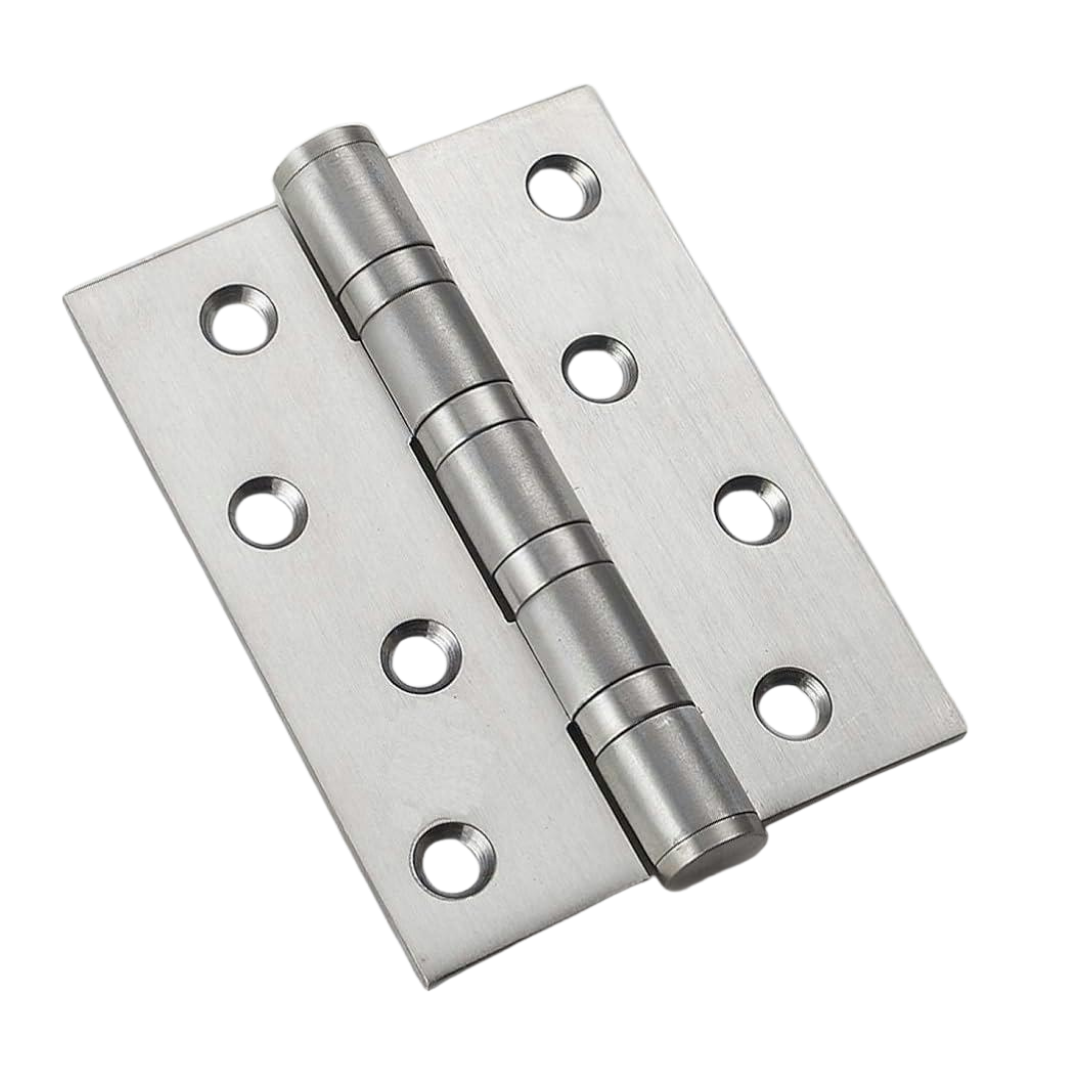

1. Ball Bearing Hinges (Stainless Steel)
Heavy-duty hinges for smooth, reliable operation.

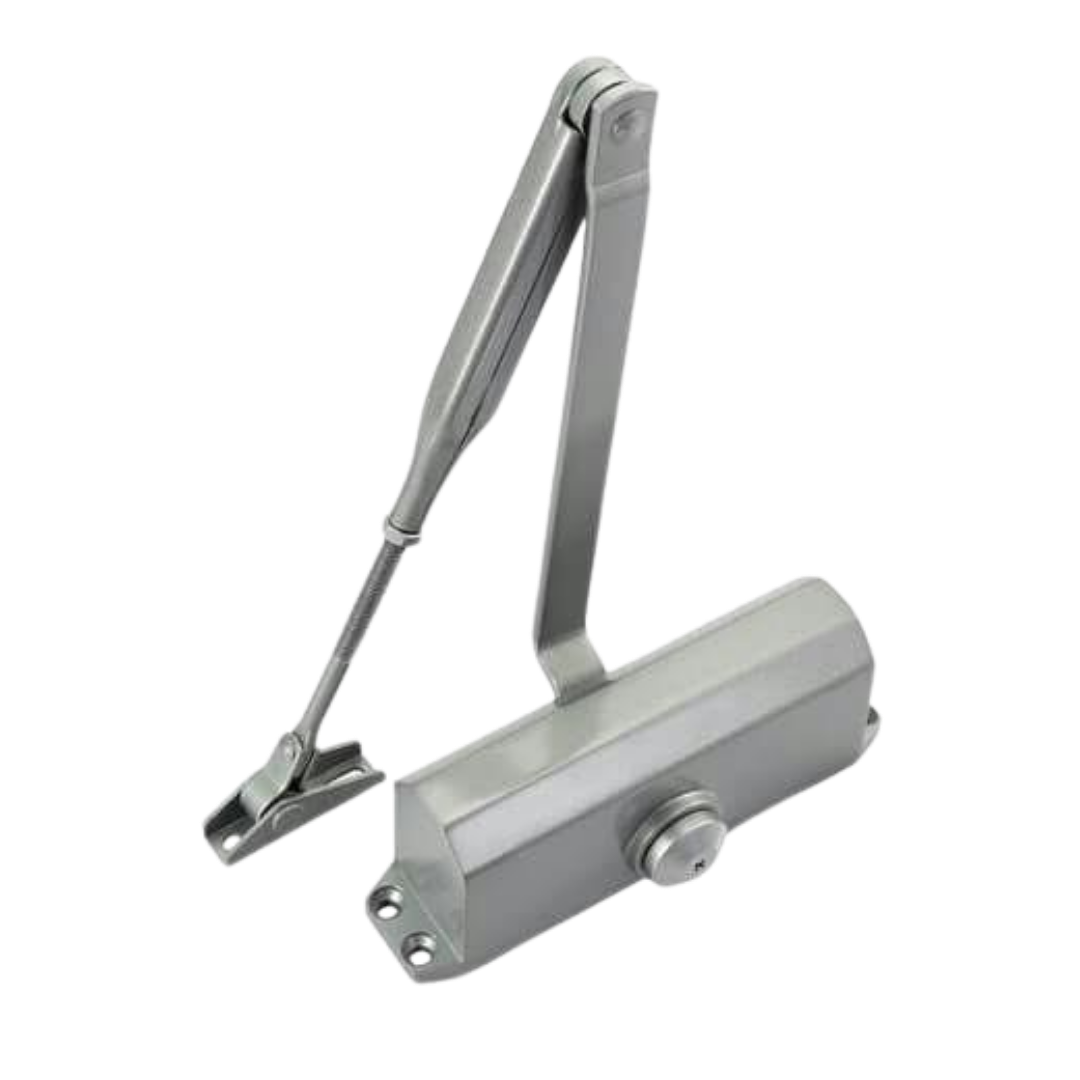

2. Overhead Door Closer
Adjustable closing speed for controlled door shutting.

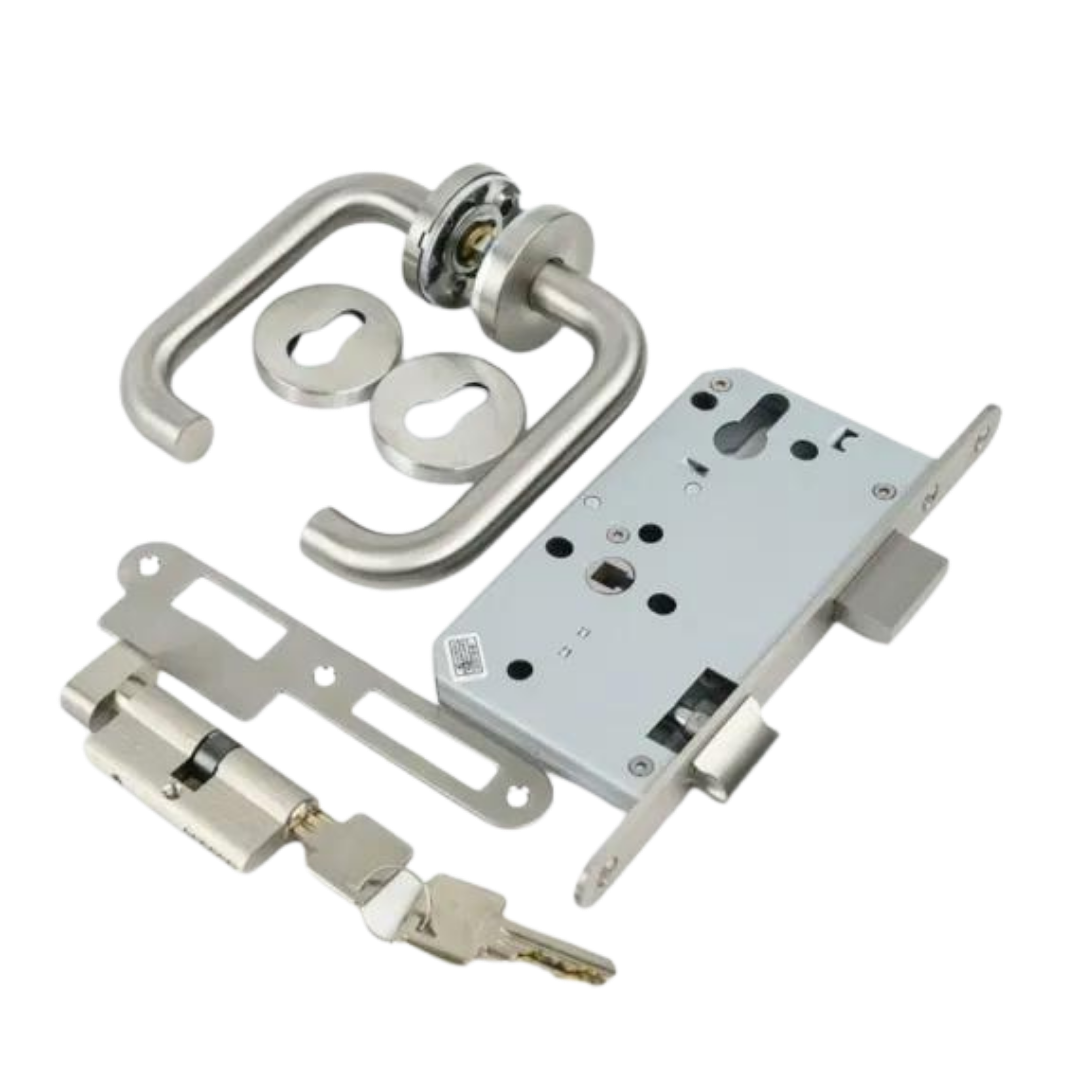

3. Mortise Sash Lock Set
Includes Lever Handle (Pair) & Double Cylinder with Escutcheon.

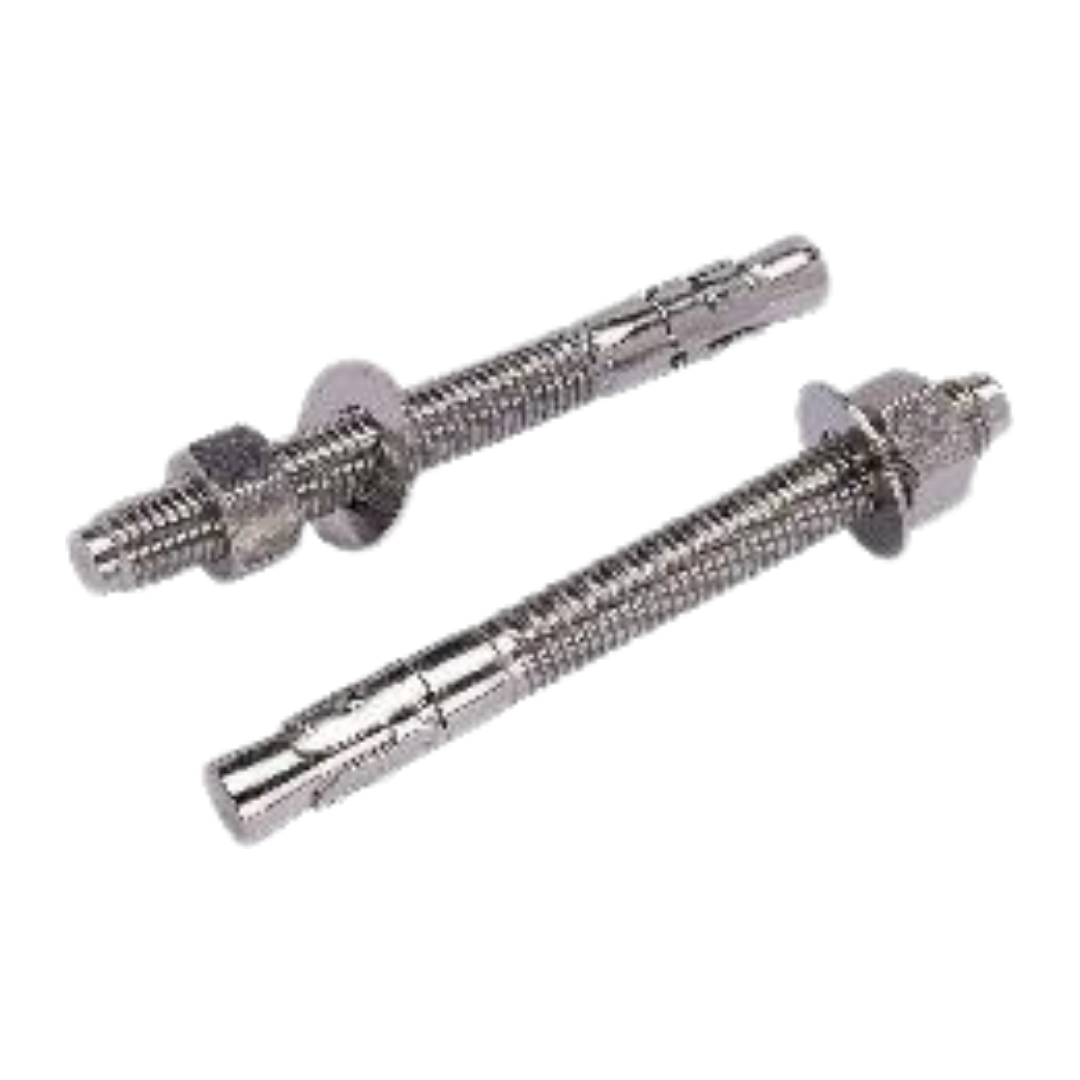

4. Anchor Bolt
Provides secure, robust installation into masonry or concrete frames.
Fire Rating
Max. Width
Max. Height
Vision Panel

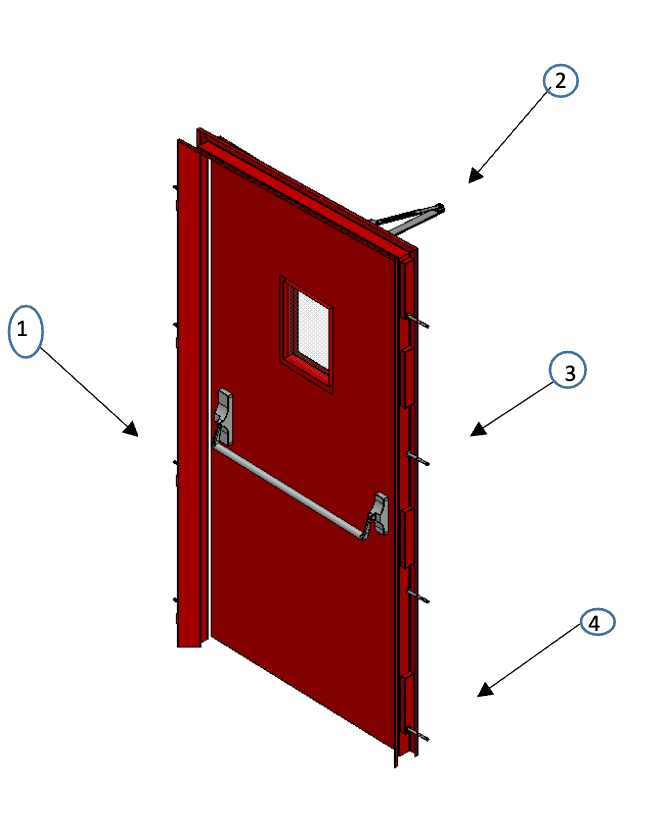

D2 : Single leaf Emergency Exit door With Panic Device
Essential D2 Components
1. Ball Bearing Hinges (Stainless Steel)
Heavy-duty hinges ensuring reliable operation during emergencies.
2. Overhead Door Closer
Ensures the fire door automatically closes and latches securely.

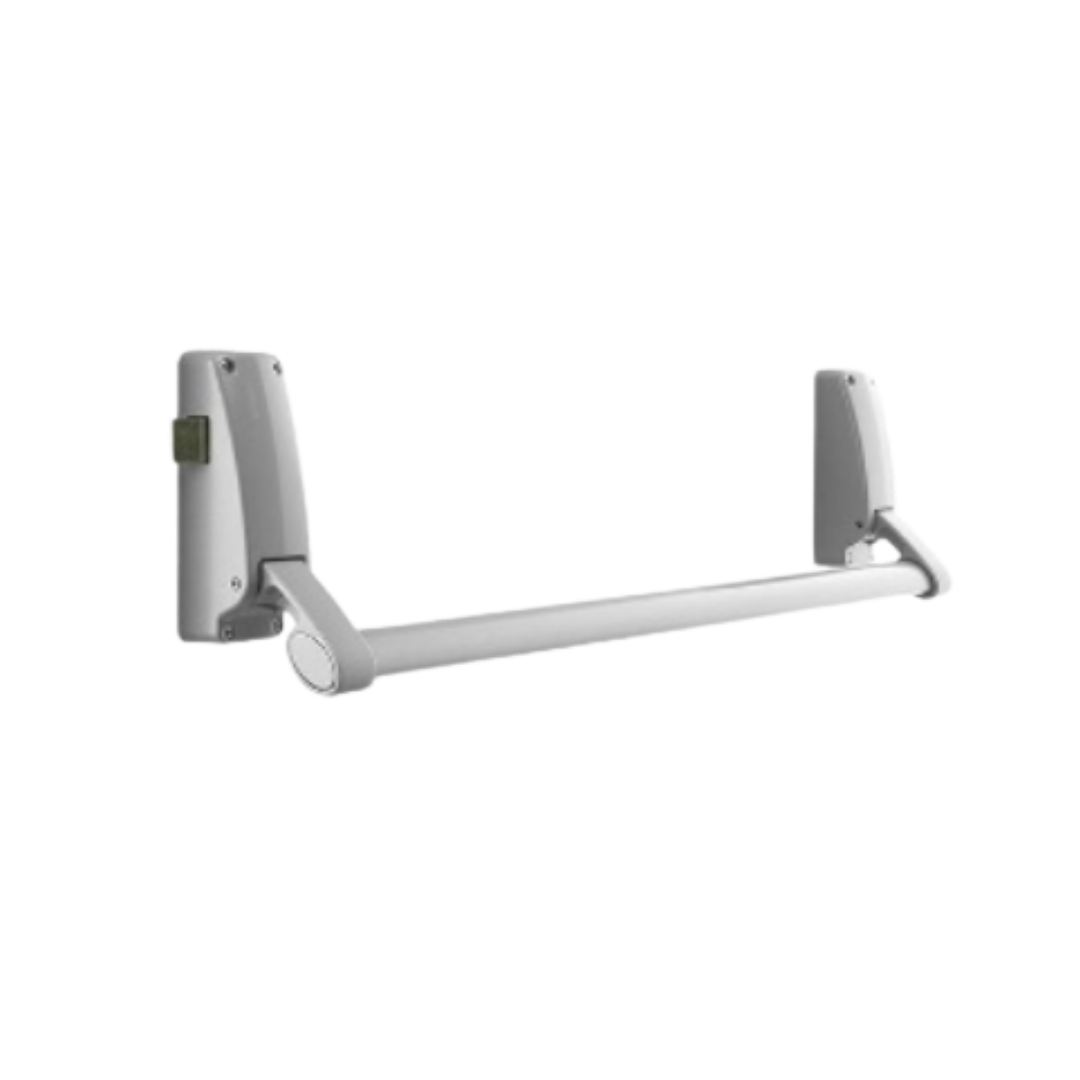

3. Panic Exit Bar
Push-bar mechanism for immediate, unhindered egress.

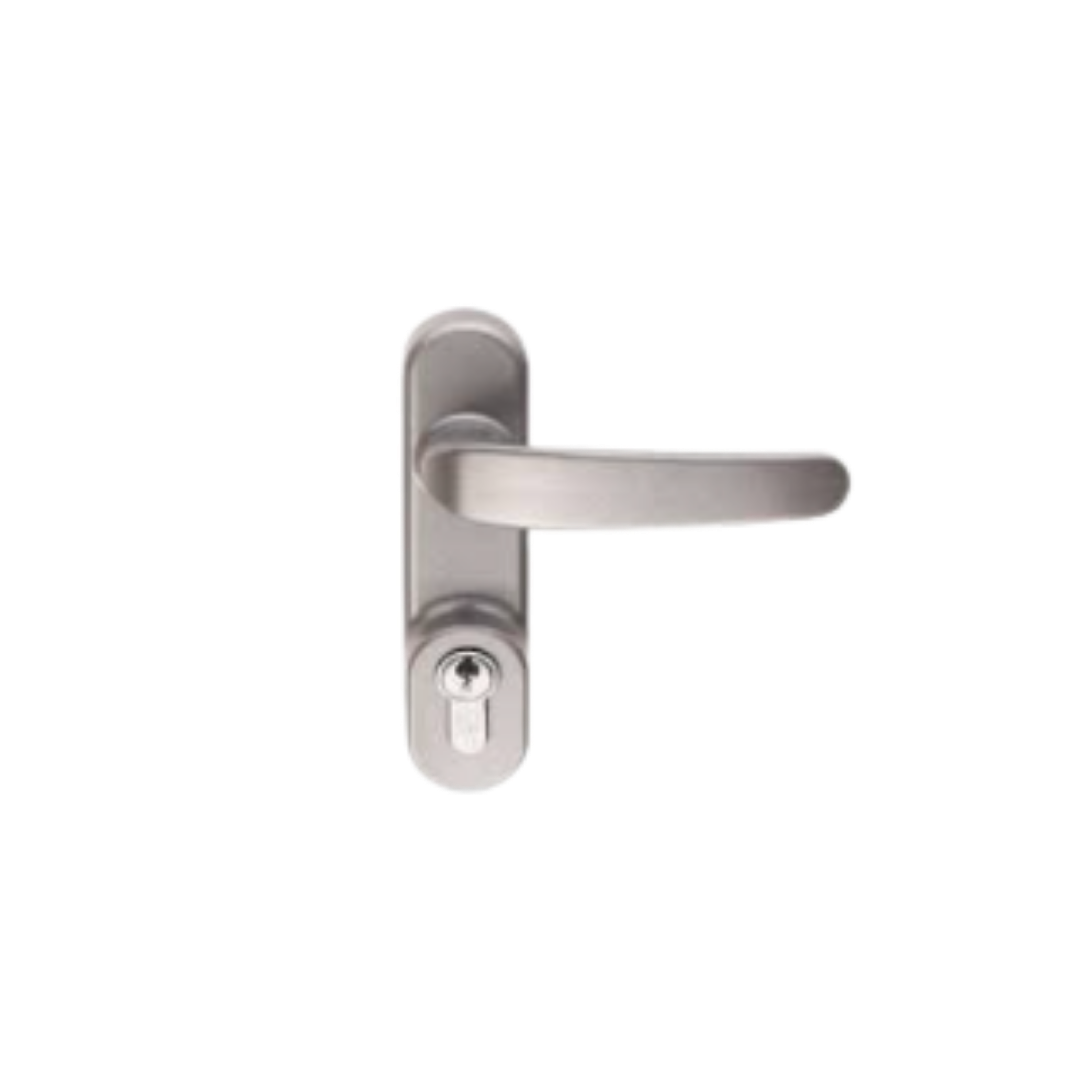

4. External Trim
Secure exterior lever handle with cylinder access.
5. Anchor Bolt
Provides rigid and secure frame installation into the structure.
Fire Rating
Max. Width
Max. Height
Vision Panel
D3 : Single leaf door with dead lock
Essential D3 Components
1. Ball Bearing Hinges (Stainless Steel)
Heavy-duty hinges ensuring reliable operation and alignment.

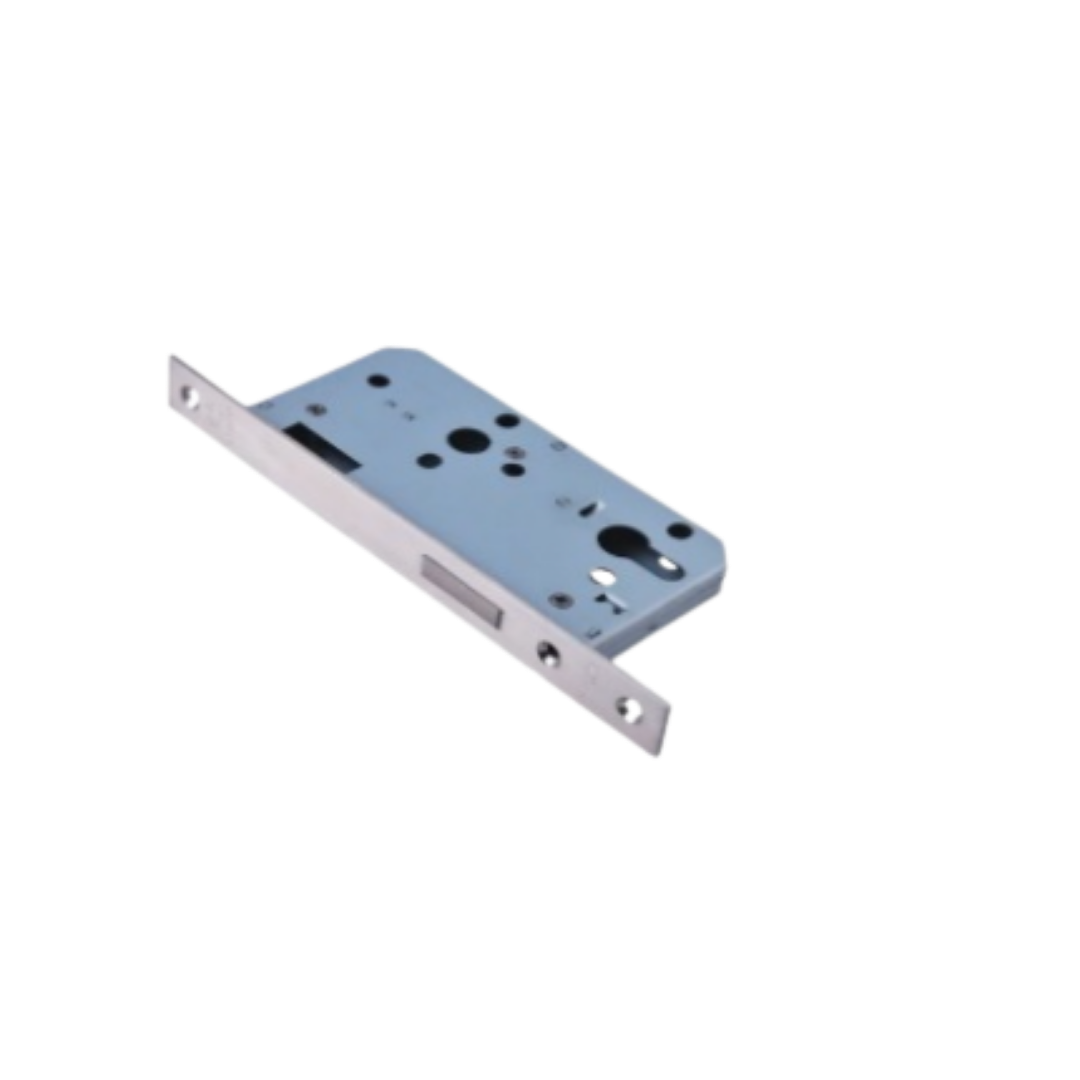

2. Deadlock Body
Heavy duty mortise mechanism for maximum security.

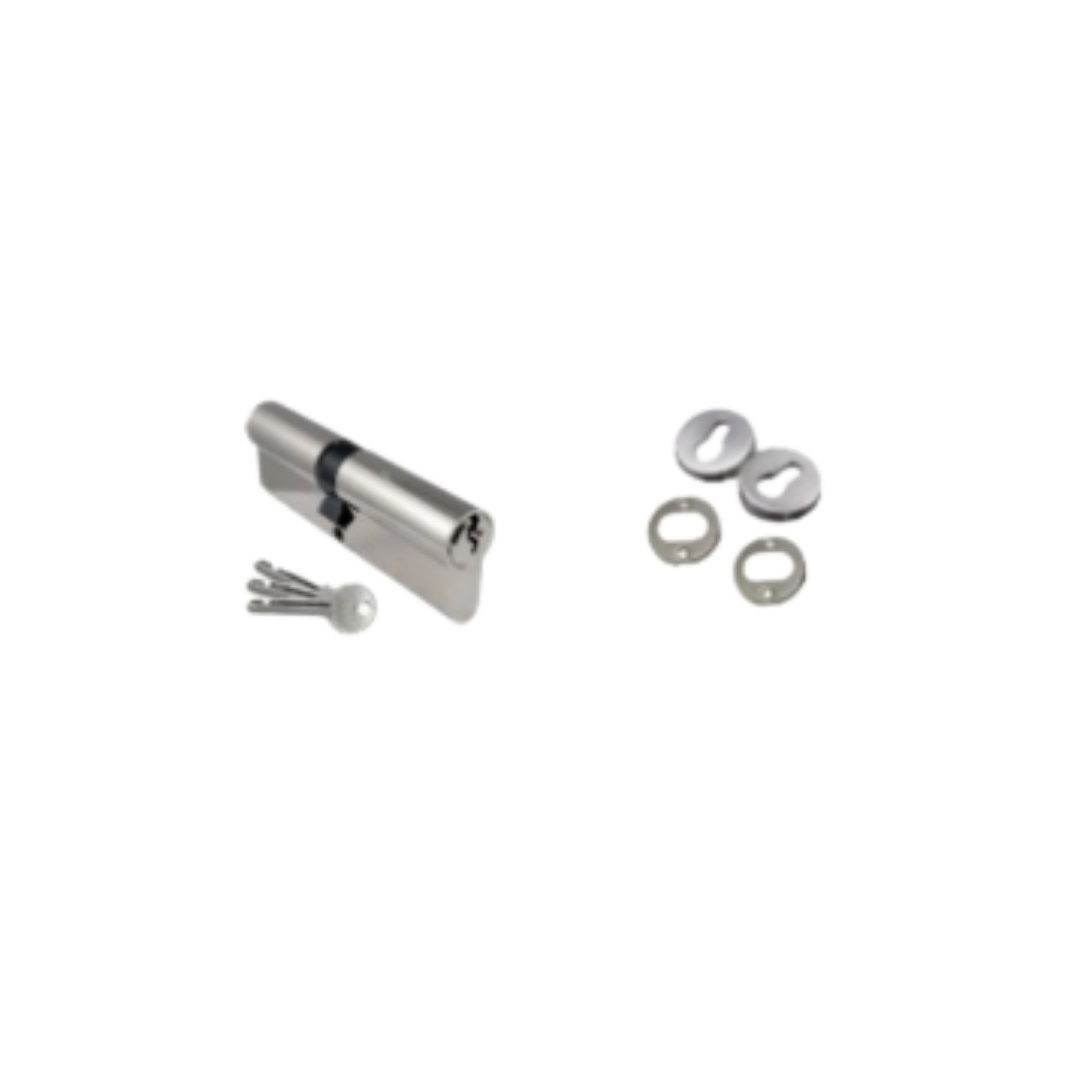

3. Euro Profile Cylinder
High-security lock cylinder with precision key-way.

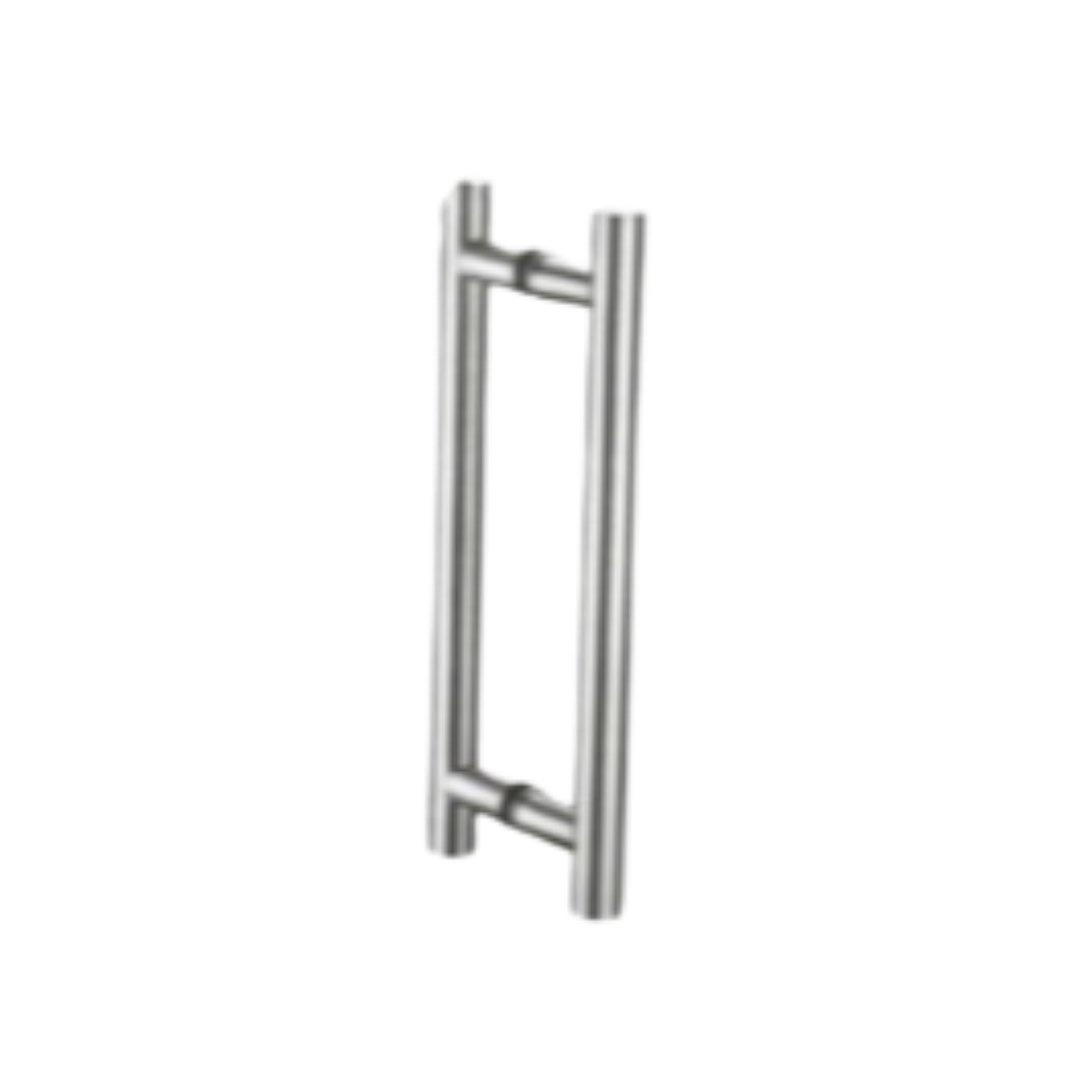

4. Pair of Pull Handles
Ergonomic stainless steel pull handles for heavy traffic.
5. Anchor Bolt
Provides rigid and secure frame installation into the structure.
Fire Rating
Max. Width
Max. Height
Vision Panel
D3 : Double unequal leaf door with dead lock
Essential D3 Components
1. Ball Bearing Hinges (Stainless Steel)
Heavy-duty hinges ensuring reliable operation and alignment.
2. Deadlock Body
Heavy duty mortise mechanism for maximum security.
3. Euro Profile Cylinder
High-security lock cylinder with precision key-way.
4. Pair of Pull Handles
Ergonomic stainless steel pull handles for heavy traffic.
5. Anchor Bolt
Provides rigid and secure frame installation into the structure.
Fire Rating
Max. Width
Max. Height
Vision Panel

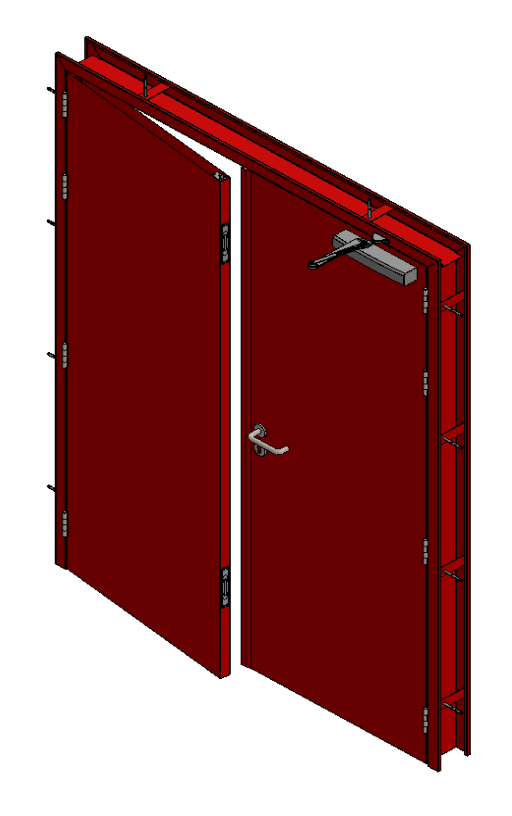

D4 : Double Equal Leaf Door
Essential D4 Components
1. Ball Bearing Hinges (Stainless Steel)
Heavy-duty hinges for smooth operation of double doors.
2. Sash Lock Set & Lever Handles
Complete locking mechanism for secure primary leaf closure.

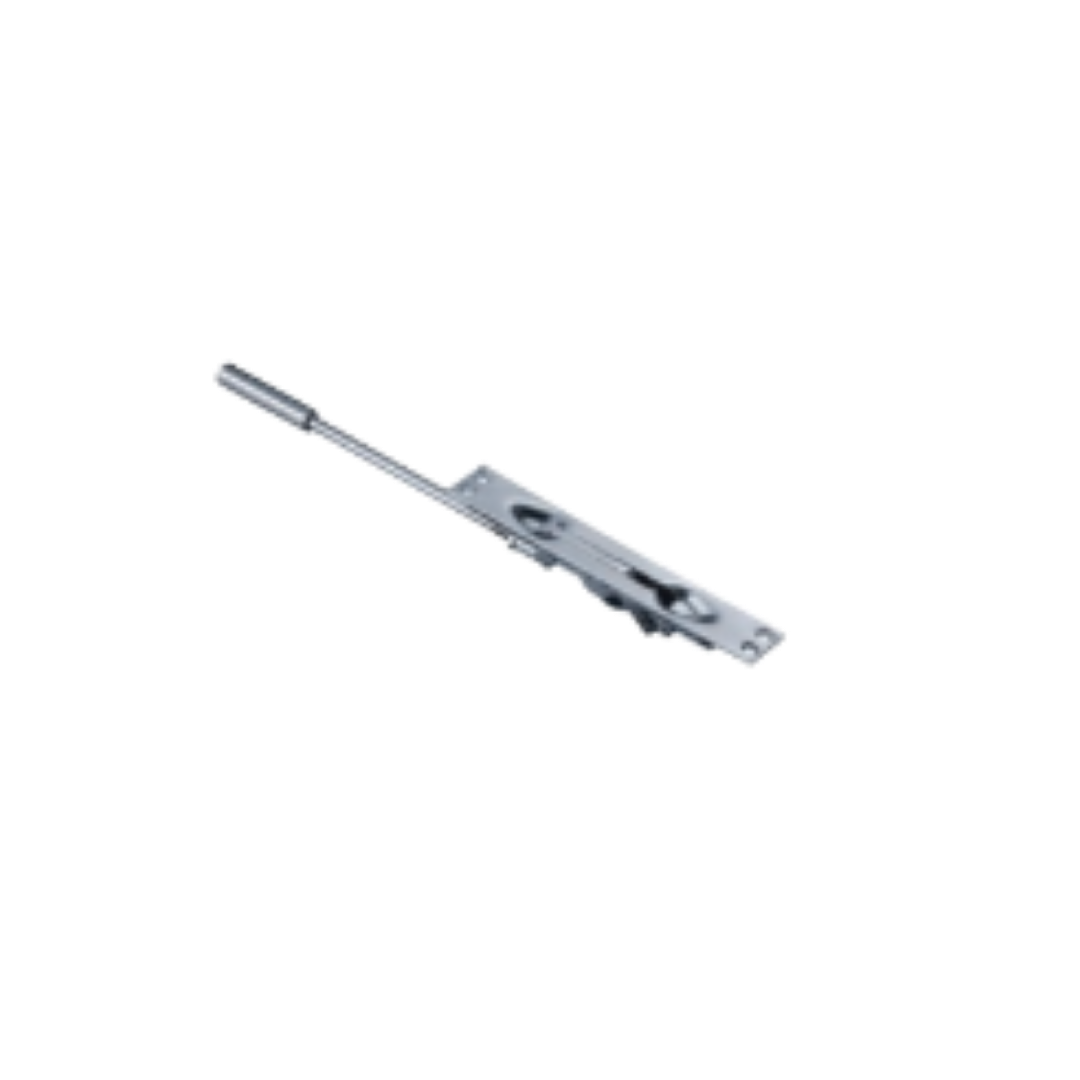

3. Concealed Flush Bolt
Secures the inactive leaf firmly in place when closed.
4. Door Closers
Ensures reliable, controlled closing of both door leaves.
5. Anchor Bolt
Heavy-duty masonry bolts for rigid frame installation.
Fire Rating
Max. Width
Max. Height
Vision Panel
Advantage Andro Fire Doors
With HMPS PCGI FRD120 doors from Andro Industries, you get the following distinct benefits designed for superior safety and performance.
Latest Standards
Tested and certified as per the latest fire testing & product standards of 2021.
Premium Materials
We strictly use only JSW prime GI sheets to manufacture our high-quality doors.
Seamless Profile
Clean profile of 115×57mm, featuring no exposed anchor fastener holes on the soffit.
Robust Substructure
Engineered to help in the long-term stability of hardware items and maintain overall dimensional stability.
47mm Thick Shutter
Features the thickest 47mm shutter in its class for superior aesthetics, insulation, and stability.
Ready Stock Sizes
Our Esteemed Clientele
Trusted by Industry Leaders Across India
Expert Knowledge Base
Direct answers regarding installation, compliance, and engineering properties.
Absolutely. Our doors are strictly tested and certified under IS 3614-2021 and IS/ISO 3008-1. They meet the mandatory fire safety requirements for high-rise buildings, hospitals, and industrial zones across India. Authentic certificates are provided immediately upon project handover.
Yes, we specialize in bespoke manufacturing. While our standard tested max size is 2300mm x 2700mm, we utilize advanced CNC fabrication to create custom dimensions that fit specific rough openings perfectly. Note that dimensions significantly exceeding tested standards may require a special technical assessment.
HMPS doors offer superior longevity and structural integrity. Unlike wood, steel does not warp, crack, or swell due to moisture or seasonal humidity changes. They are inherently termite-proof, impact-resistant, and require virtually zero structural maintenance over their 20+ year lifespan.
Yes. The Andro system is available as a complete "plug-and-play" assembly. We can pre-fit or supply compatible ironmongery including Panic Bars, Door Closers, Mortise Locks, and Vision Panels. Using our factory-approved hardware ensures the fire rating certification remains valid.
Our automated manufacturing line allows for rapid turnaround. Standard sizes are typically dispatched within 10-14 days. Custom powder-coating colors or non-standard engineering requirements generally require 3-4 weeks. We prioritize urgent safety requirements whenever possible.
